An optimum
seal keep abrasives out of internal pin
and bushing joint.
|
|
To keep lubricant
in joint and absorb side or thrust loads,
ensure to extend working life of our lubricated
chains.
|
|
Our sealed
chains track seals made from hardened and
tempered spring steel, Retard abrasive entry
between pin and bushing.
|
|
To prevent
bushing from wearing against link counter
bore and carry side loads to extend internal
pin and bushing life by 20-30% compared
to unsealed track.
|
|
Available
in standard and heavy duty versions.
|
|
|
|
Strength
– to resist bending and breaking.
|
|
Wear resistant
grouser and plate.
|
|
Retention
– to resist loosening during link
wear life.
|
|
|

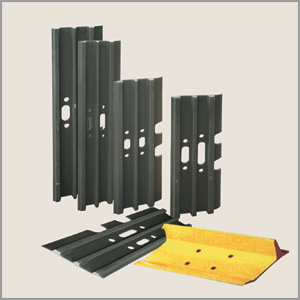

| The wide
variety of working conditions makes choosing
the right shoe very important. A good rule
is: choose the narrowest shoe that provides
adequate floatation. Shoes that are too
wide will loosen, bend and crack more easily.
They require more power to turn, and affect
maneuverability. Shoes of the correct width
give maximum performance and the lowest
possible cost to the entire system. |
|
|
|
Rolled from
modified medium carbon steel.
|
|
Furnace of
induction hardened, die quenched and tempered.
|
|
Curved leading
and trailing edge.
|
|
|
|
|
|
